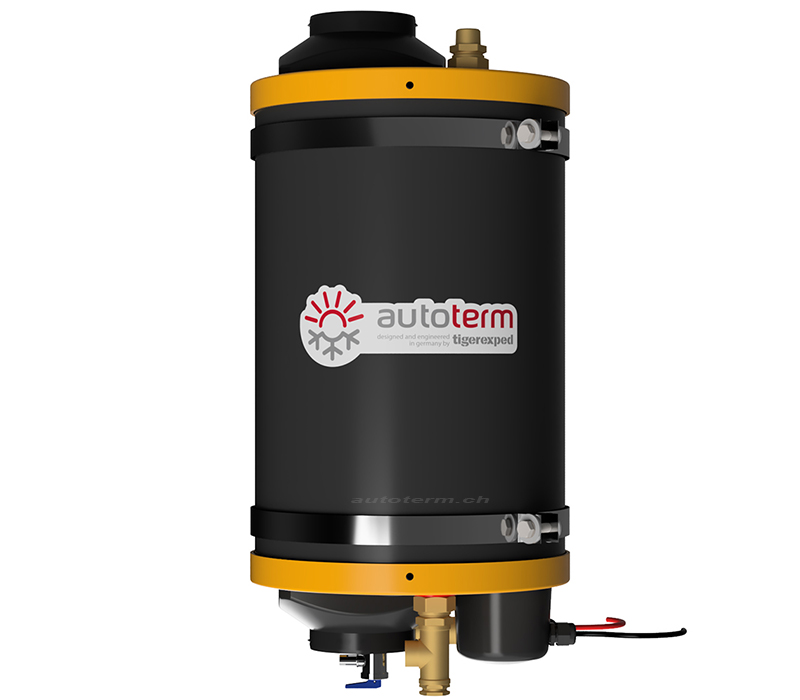

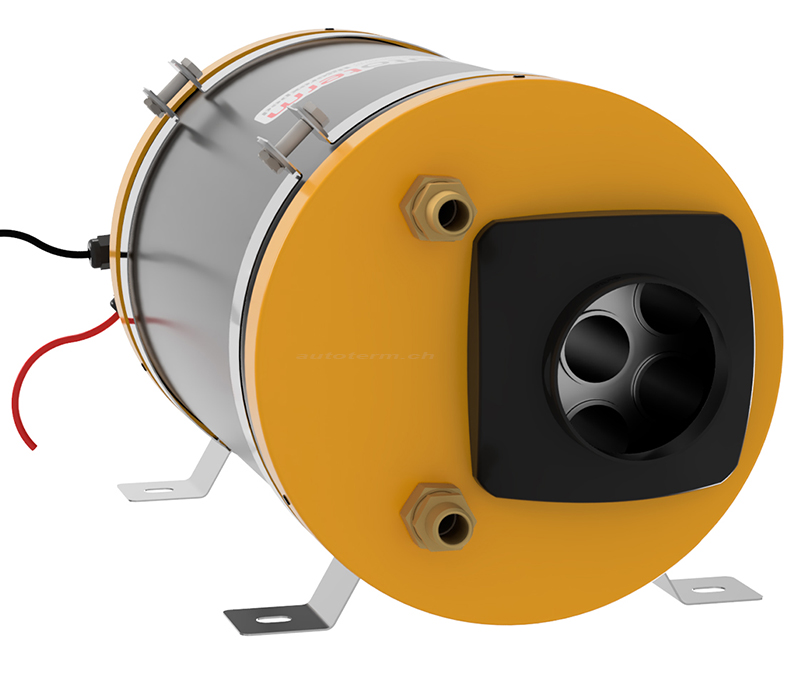

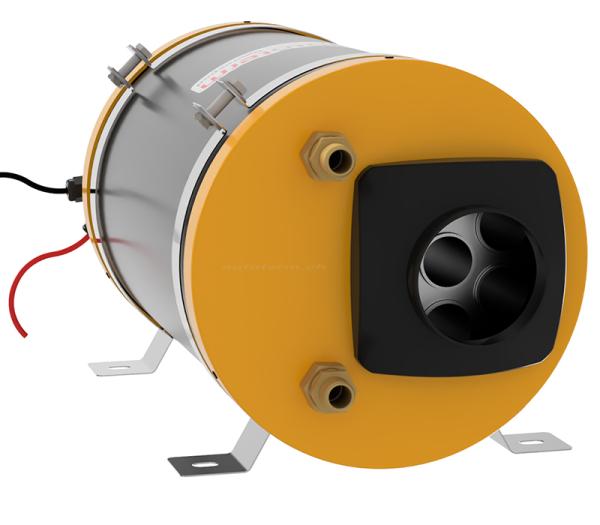

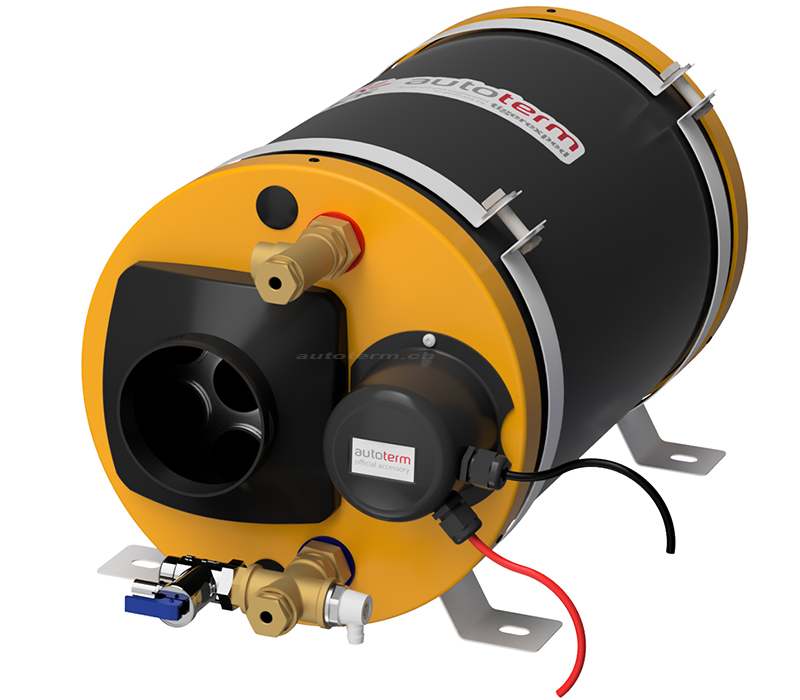

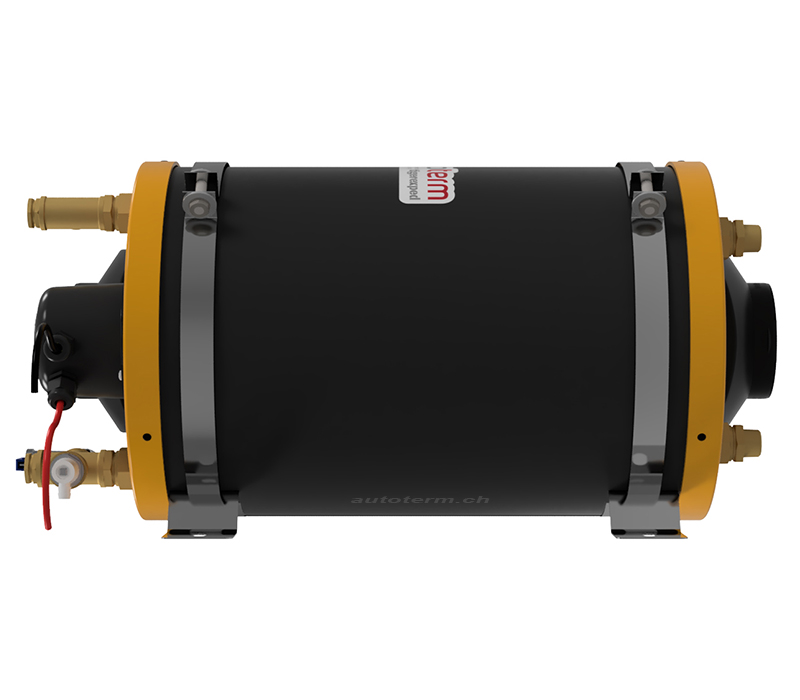

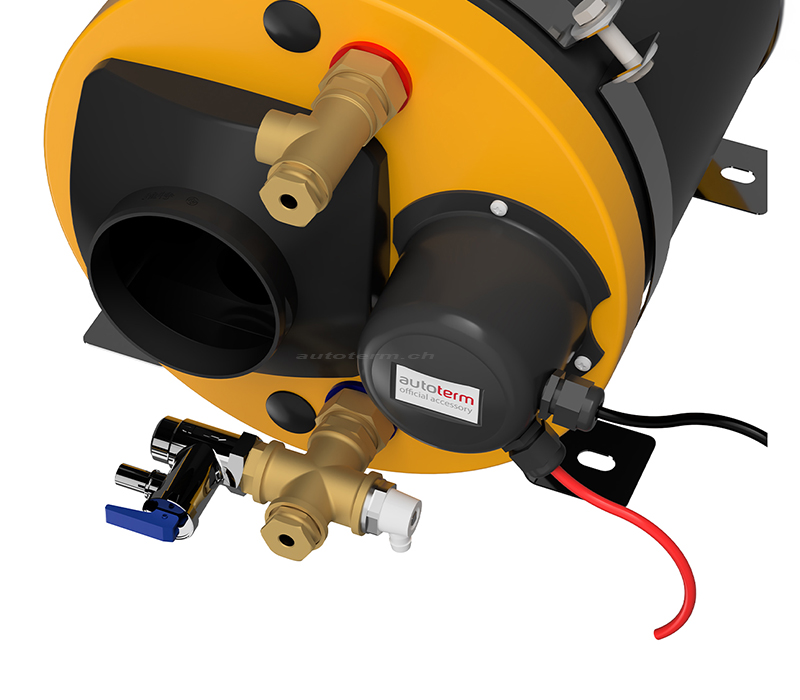

AUTOTERM combiBOIL 12L, 12V, 300W
Compact and advanced Hot Water Boiler with three versatile heating options. Monitorable and controllable via Autoterm Boiler Control panel.
| Capacity: | 12 litres |
| power configuration: | 12 V DC, 300 W |
| Dimensions: | 579 × 270 × 272 mm |
| Application: | Trucks, Buses, Motorhomes, Boats/Yachts, Off-Highway |
 |
Tailored for installations where space is a premium commodity, the AUTOTERM combiBOIL 12L is capable of heating up and storing 12 liters of hot water, which is usually enough for two adults to take consecutive showers. | |
 |
Provides both on-land and marine vehicles with a constant hot water flow, allowing to travel, without having to worry about the comfort of hot showers or warm domestic water. | |
 |
It seamlessly integrates with all AUTOTERM installations, making it an easy upgrade for current AUTOTERM users, as well as works independently, powered by electricity. |
Unlock all the features with Comfort Boiler Control
 |
|
 |
|
NOTE: Autoterm Comfort Control and Autoterm Comfort Boiler Control differ in hardware and software. The standard Comfort Control cannot be updated to the boiler monitoring functions.
Recommendations for the smoothest user experience
| Water Pump | Pressure Valve | Thermostatic mixing valve | ||
 |
 |
 |
||
| Ensures water circulation. If you already have a pressure water pump in your vehicle, you don’t need to replace it to use with the boiler system. | Eliminates risks of an overpressurized domestic water system, that could cause leaks. | Mixes hot and cold water to ensure optimal temperature and extend the warm water volume. |
How does it work?
 |
|
 |
|
 |
|
 |
Technical parameters:
| AUTOTERM combiBOIL 7L | ||||
| Voltage/Power | 12V 300W | |||
| Number of persons that can take consecutive showers | 4 | |||
| Maximum pressure | 3 bar | |||
| Time to heat water from 20°C to 60°C | ~60 minutes | |||
| Compatible heaters | AIR 2D, AIR 4D | |||
| Compatible control panels | Comfort Boiler Control | |||

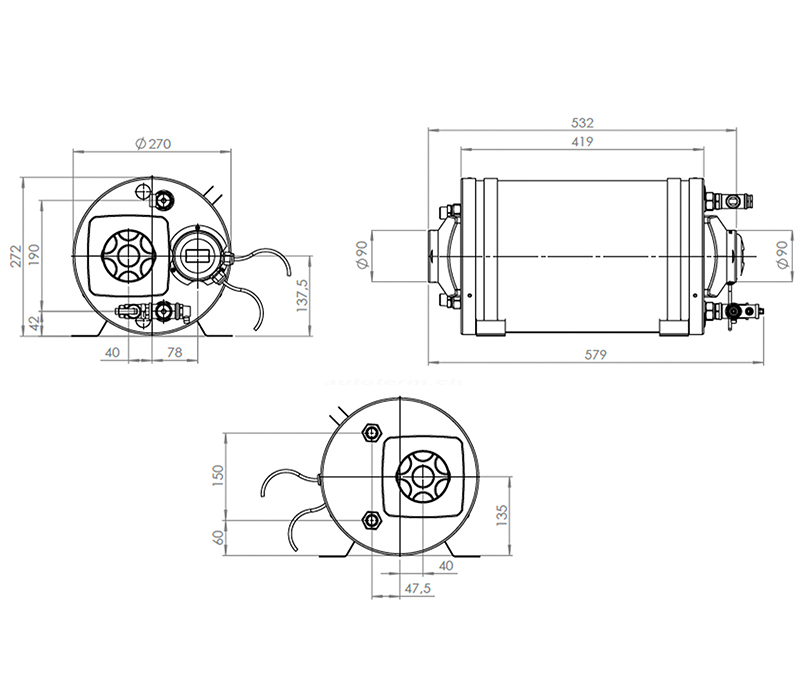

| Boiler dimensions | 579 x 270 x 272 mm | |||
| Air inlet/outlet size | ø 90mm | |||
| Body | Made of 316L stainless steel | |||
| Weight of the Boiler | 14.5 kg | |||
| Package dimensions | 65.0 × 36.5 × 36.5 cm | |||
- Manual AUTOTERM combiBOIL (EN)
- Anleitung AUTOTERM combiBOIL (DE)
- 3D Modell: 12l 12 & 24V
- 3D Modell: 12l 230V
- 3D Modell: 12l 120V
